| Place of Origin: | CN |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | ISO9001 | UL ( E337072 ) | TS16949 ( 0259279 ) | RoHS |
| Model Number: | PCB-R-002 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 0.1-3usd/pc |
| Packaging Details: | Vacuum packing |
| Delivery Time: | 3-5days |
| Payment Terms: | Paypal, T/T, Western Union |
| Supply Ability: | 10000-20000 square meters per month |

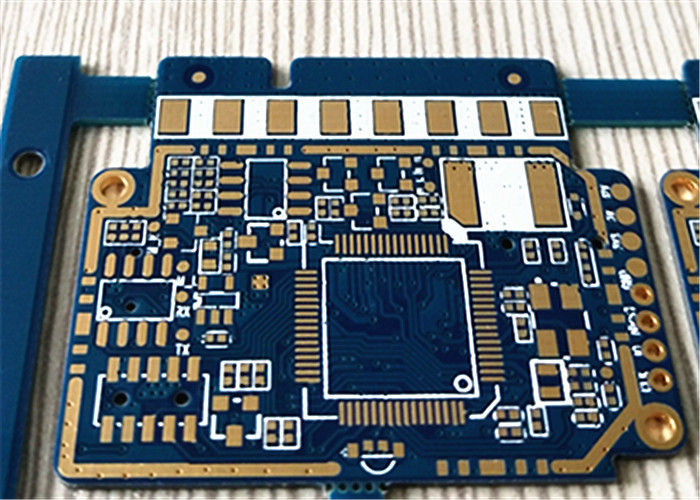

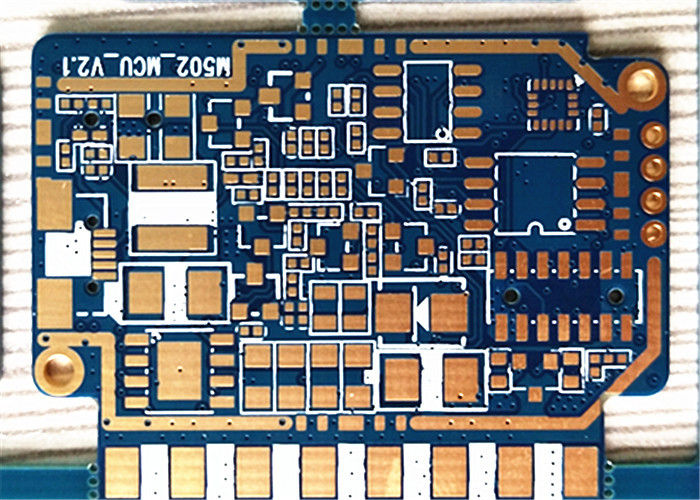

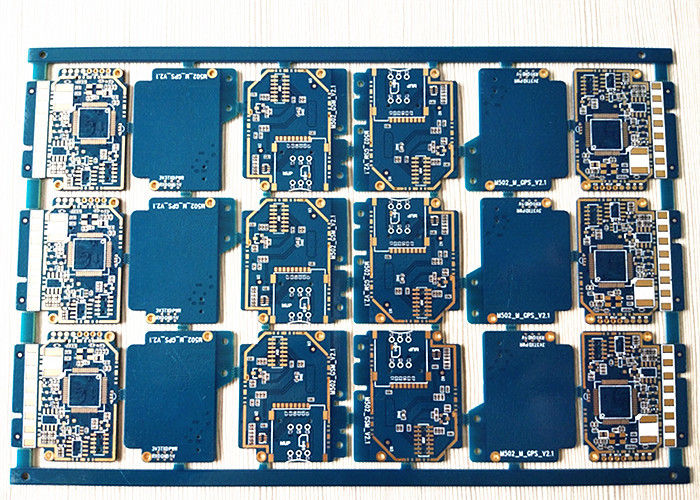

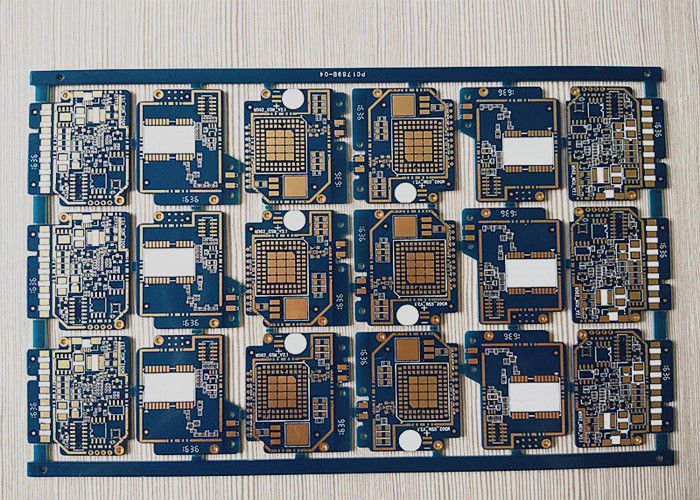

| Product Name: | Multilayer Sided PCB | Board Material: | Standard FR-4 |
|---|---|---|---|
| Surface Treatment: | Immersion Gold | Board Thickness: | 1.6mm |
| Copper Thickness: | 1oz | Soldermask: | Blue |
| High Light: | electronics circuit board,rigid flex circuit board | ||
1.Bried description
Our PCB technology capacity includes 1 to 50 layers, minimum dill hole size of 0.1mm, minimum track/line size of 0.075mm, surface treatment of OSP, HAL, HASL, ENIG, Gold Finger and more. We can make our production capacity of 10,000-20,000 square meters/month for double sides and 8,000-12,000square meters/month for multilayer.
We have over 300 employees and 8,000 square meters building area. Our products include Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df, FPC, Rigid-Flex PCB and Aluminum, Copper base PCB, etc. Assembly service including SMT, DIP with six assembly lines.
| Layer count | Single sided, double sided and multilayer to 50 layers. |
| Base material | FR-4, High Tg FR-4, Aluminum Base, Copper Base, CEM-1, CEM-3 and so on |
| Board thickness | 0.6-3mm or thinner |
| Copper thickness | 0.5-6oz or thicker |
| surface treatment | HASL, Immersion Gold(ENIG), Immersion Silver, Immersion Tin, Plating Gold and Gold finger. |
| Soldmask | Green, Blue, Black, Matte Green , White and Red |
| Silkscreen | Black and white |
3.More photos
