| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | ISO9001, UL, RoHS |
| Model Number: | PCB-S-326494647 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 200 |
| Packaging Details: | vacuum |
| Delivery Time: | 8 |
| Supply Ability: | 20000 sq.m / month |
| Layers: | 2 | Material: | FR-4 |
|---|---|---|---|
| Board Thickness: | 1.6mm | Copper: | 1 Oz |
| Surface: | HASL LF | Size: | 138.5*160mm / 25UP |
| High Light: | electronics circuit board,rigid flex circuit board | ||

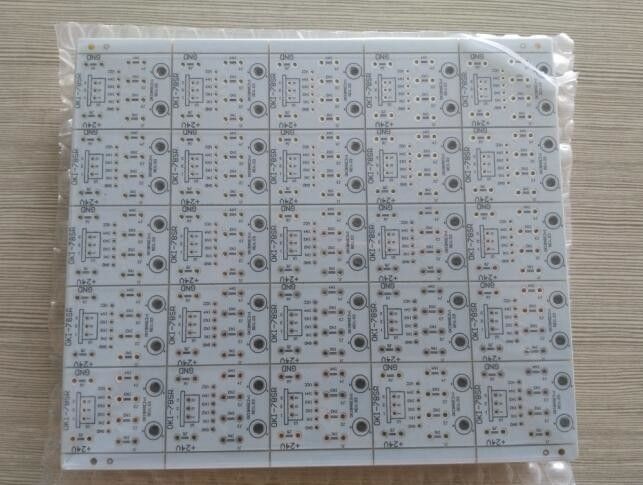

This is a Double sided PCB with 1.6mm 1oz copper thickness HASL surface treatment white soldmask
How to place an order:
More information about Kingsum Electronic:
Manufacturing Capacity - Rigid PCB
| Item | Production Capacity |
| Type of Products | Single Sided, double sided & multilayer |
| Max Board Size | Single & Double Sided: 600*1500mm |
| Multilayer: 600*1,200 mm | |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Golden Finger, etc. |
| Layers | 1~20 |
| Boad Thickness | 0.4~4.0mm |
| Base Copper | 18um(1/2oz), 35um (1oz), 70um (2oz), 105um (3oz), 150um (4oz), 300um (8oz) |
| Board Material | FR-4, Aluminum base, Polymide, copper base, ceramic base |
| Min Drilling Hole Size | 0.1mm |
| Min Line Width & Space | 0.075mm |
| Platting Gold | Nickle Plating Thickness 2.5~5um, gold thickness 0.05~0.1um |
| Tin Spraying | Tin thickness 2.5~5um |
| Milling Space | wire & edge: 0.15mm, hole & edge: 0.2mm, Contour Tolerance: +/-0.1mm |
| Socket Chamfer | Angle: 30°/45°/60° Depth: 1~3mm |
| V-Cut | Angle: 30°/45°/60° Depth: 1/3 of board thickness, min aise: 80*80mm |
| On-Off Test | Max Testing Area: 400*1,200mm |
| Max Testing Point: 12,000 points | |
| Max Testing Voltage: 300V | |
| Max Insulation Resistance: 100mΩ | |
| Impedance Control Tolerance | ± 10% |
| Soldering Endurance | 85℃~105℃ / 280℃~360℃ |

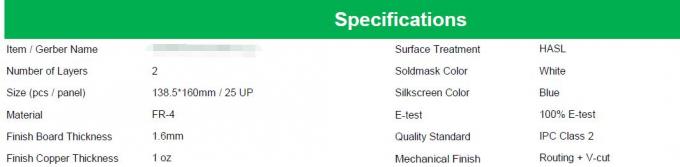

Detail Specification:

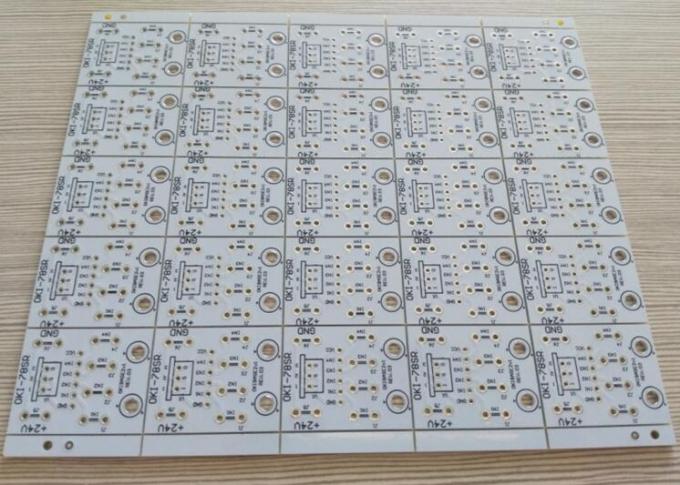

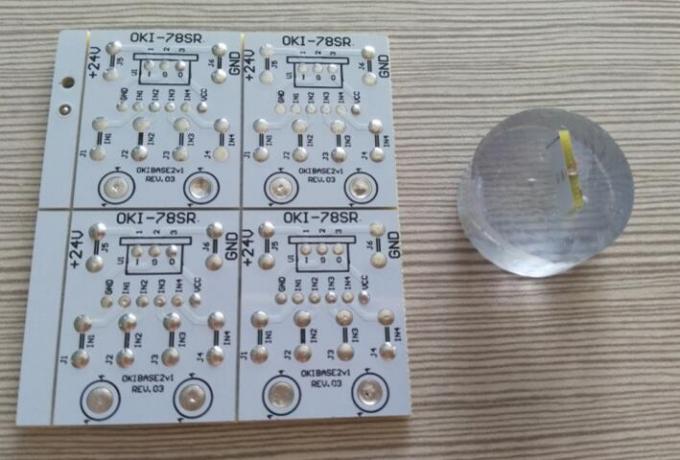

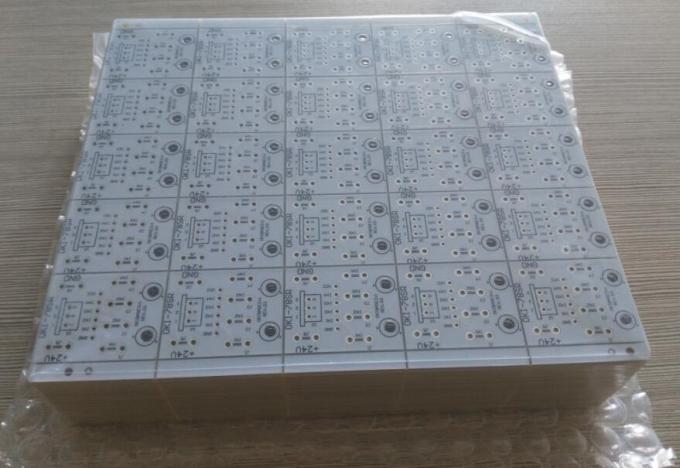

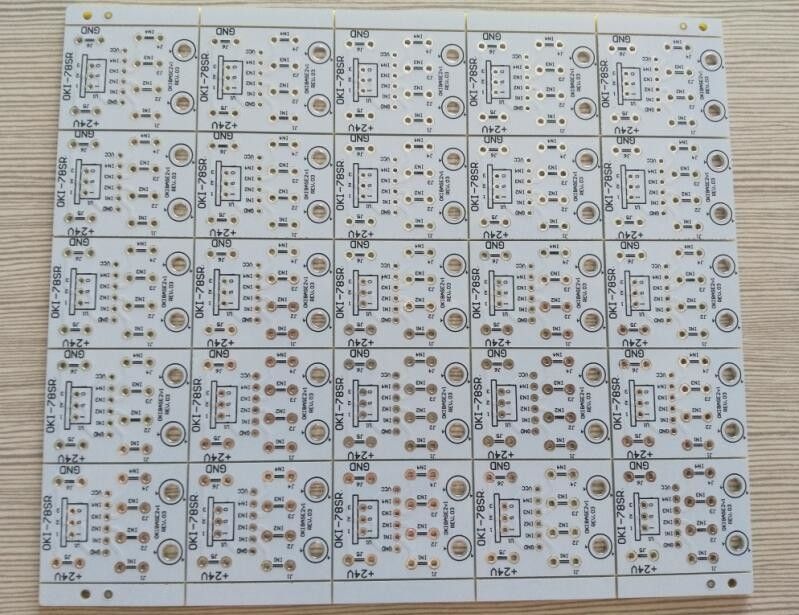

More photoes for this Double sided PCB with 1.6mm 1oz copper thickness HASL surface treatment white soldmask

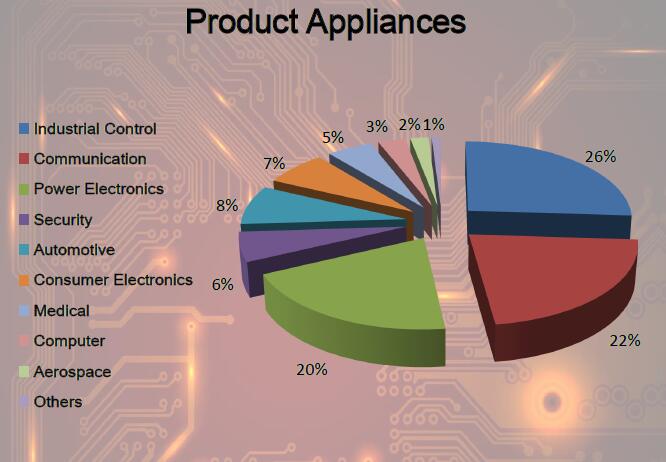

Product Applicances

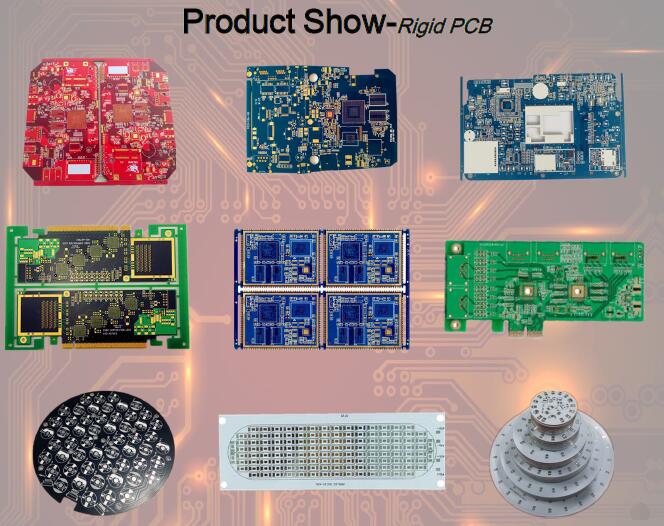

Product Show - Rigid PCB

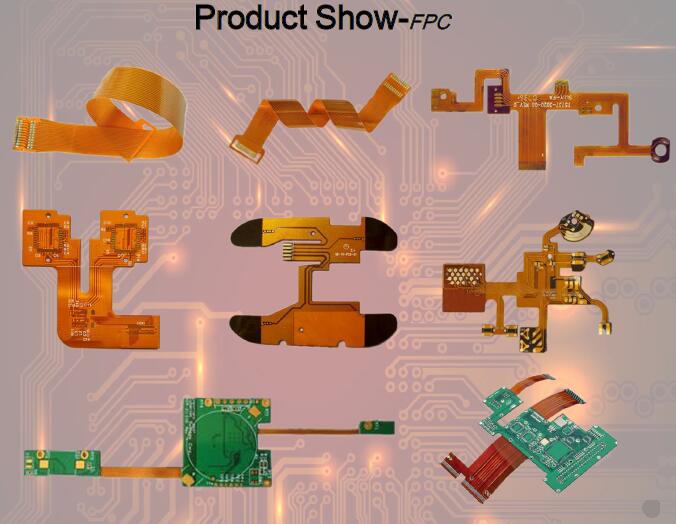

Product Show - FPC

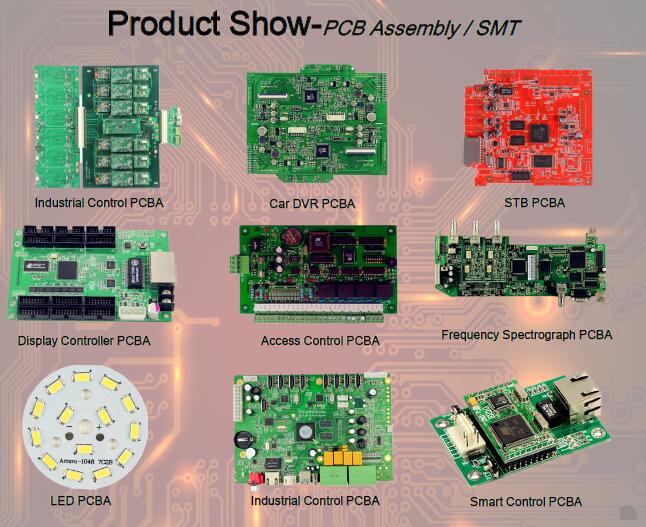

Product Show - PCB Assemblies
