| Origin: | China |
|---|---|
| Brand Name: | N/A |
| Certifications: | ISO9001 | UL (E337072) | TS16949 (0259279) | RoHS |
| Model: | Kingsum Electronic |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD 0.1 - 5 |
| Packaging Details: | Vacuum packaging |
| Lead Time: | 5 - 8 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Capacity: | 20,000 m |
| SMT And DIP: | Support | Application: | Light Application |
|---|---|---|---|
| Components: | Supplied By Customers Or Supplied By Manufacturer | PCB Test: | AOI ; 100%test For Open And Short; |
| PCB: | HDI With Laser And Buried Holes | ||
| High Light: | 1OZ Aluminum PCB Board,1.6mm Thickness Aluminum PCB Board,Fr4 Prototype Circuit Board | ||
1. Detailed Specifications
| Material | Aluminum |
| Board Thickness | 1.6mm |
| Surface Treatment | Lead Free |
| Copper Thickness | 1/1 OZ |
| Soldermask | White; Black |
| Silkscreen | Black; White |
| The Min Laser Drill Hole | 4 Mill |
| Panel | V-Cut |

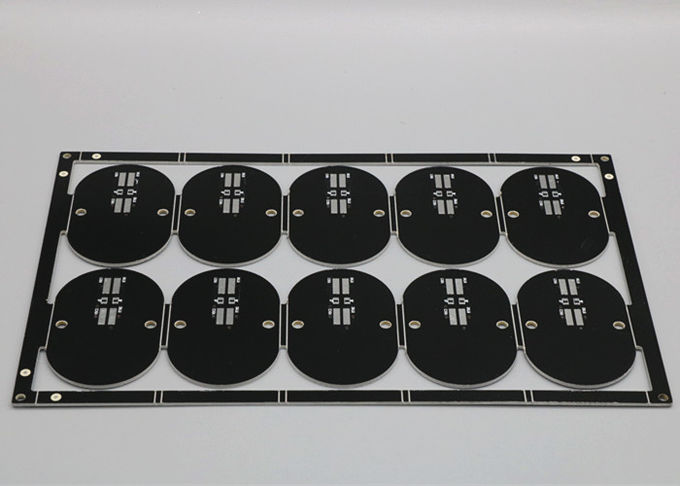

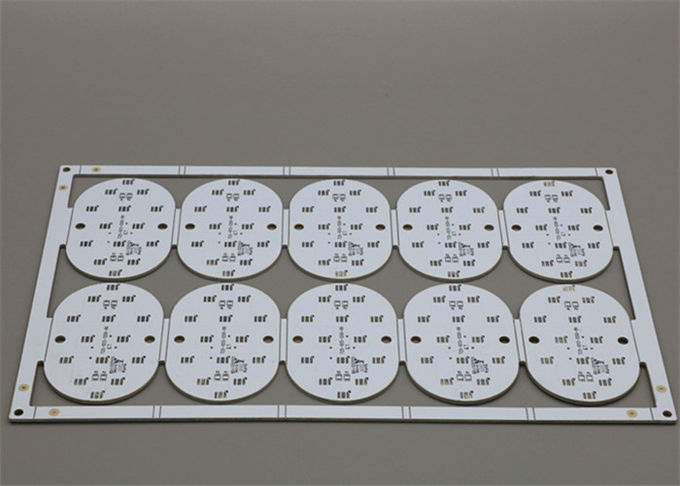

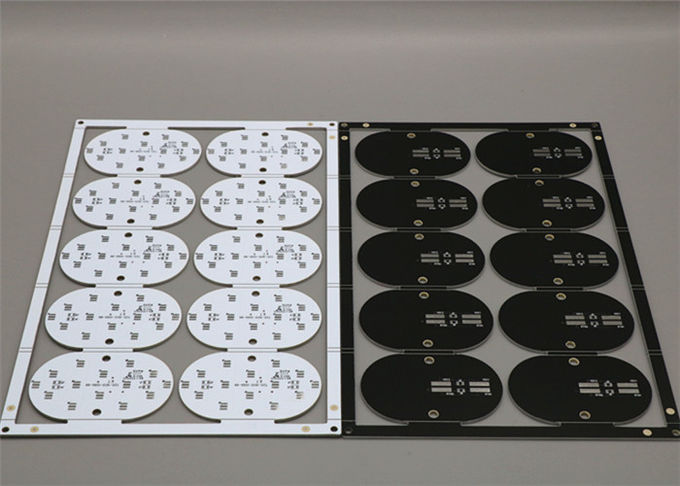

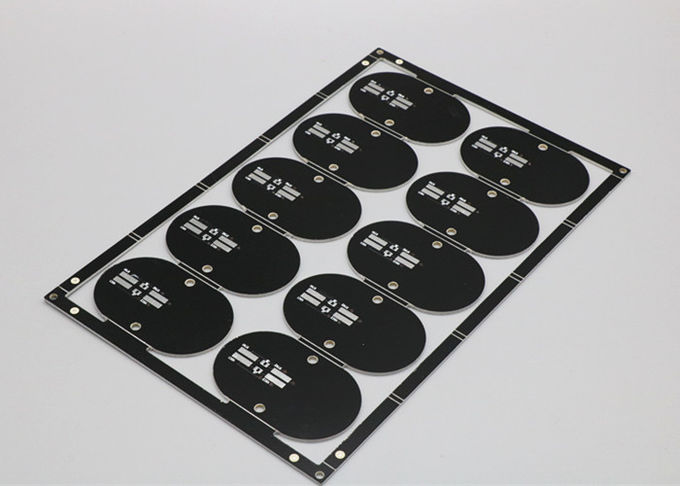

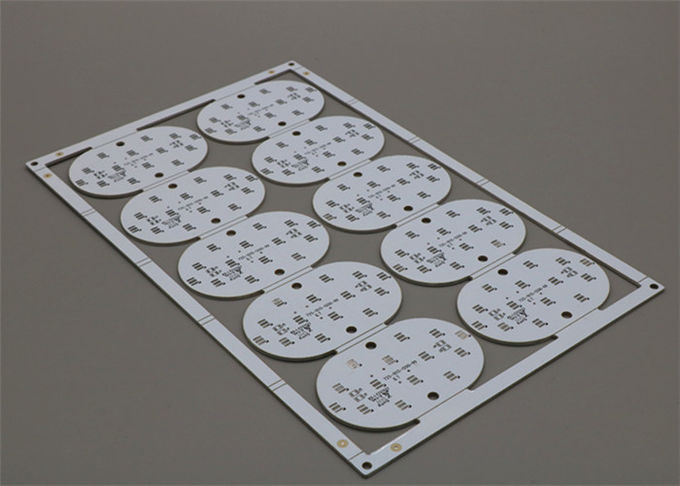

2. Pictures




FAQ
Q: What files do you use in PCB fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24-48 hours for PCBA quotation.
Q: How can I know the process of my PCB production?
A: 5-7days for PCB production and components purchasing, and 14 days for PCB assembly and Testing.
Q: How can I make sure the quality of my PCB?
A: We ensure that each piece of PCB products work well before shipping. We'll test all of them according to your test procedure.
